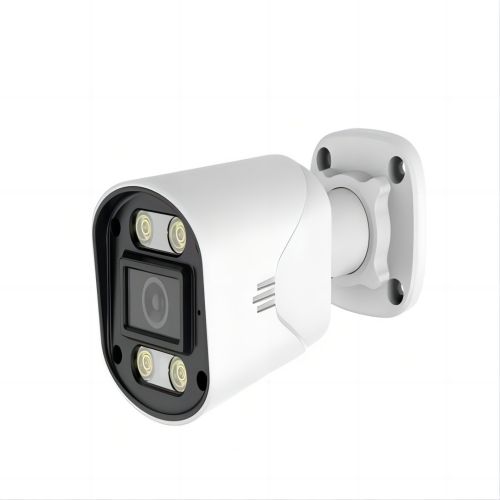

4G and WIFI BULLET CAMERA
Features
Intelligent correlation：
Support humanoid detection, report alarm information to backend client or APP, and support linked image cloud storage;
After the humanoid is detected, it can be linked with the high warning light board and the horn to realize sound and light alarm;
Humanoid detection can independently set light/voice linkage according to day and night or time period;
After the humanoid detection alarm is triggered, it can be linked to upload FTP, send emails, and call presets;
Support humanoid automatic tracking.
Image correlation：
16 : 9 widescreen 5MP (2880 * 1620@25 frames per second) high-definition picture, the night vision effect is more shocking;
Intelligent infrared / warm light, the face is clear without overexposure;
Support optical wide dynamic;
Support image 2D, 3D noise reduction technology;
Support Extra-ISP night vision low smear image algorithm;
Supports 3 image scene modes: transparent, bright, standard, and the image style can be switched at will;
"Dark area perception algorithm " at night, which improves the visibility of objects in the dark part of the image by 50 %, but does not affect the exposure in bright areas ;
"Balanced exposure engine " at night. When people and cars approach, balance the exposure of near and far images, the exposure of near faces is better suppressed, and the visible distance of distant scenes is about 5 meters longer than that of friends ;
Support image rotation 90 ° to achieve the effect of corridor mode and increase the effective monitoring field of view.
Supports manual shutter, exposure adjustment, and can see the contents of electronic screens, LED screens, and meters with different refresh frequencies;
It supports free switching of three modes: infrared, warm light, and intelligent dual light. Users can set it by themselves through NVR or APP.
System functions：
Support H.265 intelligent encoding, the encoding and compression efficiency is higher, and the bit rate is lower when the image quality is guaranteed;
Support Web-side operation, support LAPI development;
Support motion detection, occlusion detection, sound detection;
Support Onvif standard protocol, can access third-party NVR/platform;
Support GB \T28181 national standard agreement;
Support P2P+ streaming media forwarding mode, APP second-speed connection, push alarm information to APP and other functions;
Supports full Netcom function, can automatically change its own IP address according to the NVR network segment of third party and realize fast access to the NVR of third party;
Support humanoid detection alarm linkage picture cloud storage.
Interface related：
Support 1 channel audio input, 1 channel Speaker audio output, no need for power amplifier board, support two-way voice intercom;
Intelligent soft photosensitive, more accurate day and night switching, no need for photoresistor;
Support 100M network port;
Support supporting 4G expansion board, support mobile, telecommunications, UYC networks;
Support matching WiFi expansion board, support 2.4 GHz;
Comes with a reset button, and supports extending the reset button to the tail line;
Support horizontal + vertical dual motor;
Support 1 TF card storage, maximum support 256G.
Hardware related：
PCB thick copper plating for heat dissipation, -30℃~60℃ 7*24h stable operation;
2mm plate thickness, the strength is increased by 50%, and the virtual focus problem caused by thermal deformation is reduced;
Wide voltage circuit protection design, 9-15V tolerance voltage access, anti-power reverse connection protection design;
Network port 4KV lightning protection, power port 2KV lightning protection, to avoid possible damage such as surge, induction lightning, static electricity.
Personalization：
Support personalized customization, can customize the model name, Logo, image scene mode or parameters, OSD, default alarm audio.
